Accsoon CineView M7 PRO - smart SDI/HDMI monitor with transmitter/receiver
[16:08 Thu,3.April 2025 by Thomas Richter]
Camera accessory specialist Accsoon has unveiled the two new smart 7" video monitors CineView M7 PRO and CineView M7 for professional use at NAB 2025. Both models are scheduled to be launched during 2025. The CineView M7 PRO is a 7" touchscreen SDI/HDMI monitor with an integrated wireless transmitter and receiver that is compatible with Accsoon&s CineView transmitters such as the CineView Quad, HE, SE and 2 SDI. The CineView M7 is essentially the same monitor, but without the CineView integration for wireless video transmission and the necessary external antennas.
Accsoon CineView M7 PRO with Cage
The Display
The centerpiece of both monitors is a 7" touch display with a resolution of 1,920 × 1,200 pixels, which covers 100% of the REC.709 color space and has a peak brightness of 1,000 nits and a contrast ratio of 1,500:1. The robust aluminum housing ensures high stability and good heat dissipation, while Corning Gorilla Glass Victus protects the display from scratches. A matching cage and sun visor are also planned to be offered as options.
Record and stream videos
Thanks to their integrated CPU, GPU and Neural Processing Unit, the CineView M7 and M7 PRO offer a range of functions that go beyond simple monitoring. Both models can connect to a local network via Wi-Fi 6 in order to transfer videos to C2C (Camera-to-Cloud) platforms or stream directly to social platforms via RTMP/SRT. In addition, videos can be recorded directly to USB sticks, SD cards or external SSDs in up to 4K60 in H.264 or H.265. The video and audio bit rates of the recording can be adjusted to suit the desired recording times or the size of the storage media used.
Accsoon CineView M7 PRO
Monitoring functions and LUTs
The monitors& operating system offers its own intuitive user interface, via which professional monitoring tools such as False Color, Histogram, Zebras, Waveform and Vectorscope can be called up. The buttons can also be individually assigned with special functions. Users can also import and load their own 3D LUTs and high-precision 1D LUTs (up to 4096) via USB, SD card or flash drive. The CineView M7 and M7 PRO can also function as a LUT box to output transformations via HDMI, SDI or Wi-Fi streaming or burn them directly into the recorded image.
Video format conversion and calibration tools
Another feature of the CineView M7 and M7 PRO is the video format conversion, which enables SDI-HDMI cross conversion as well as up/down and cross conversions from HD to 4K and changes to the frame rate. Calibration tools such as gamma corrections/compensation, color temperature correction and independent RGB gain and offset settings are also offered. A calibration LUT can also be used for the display.

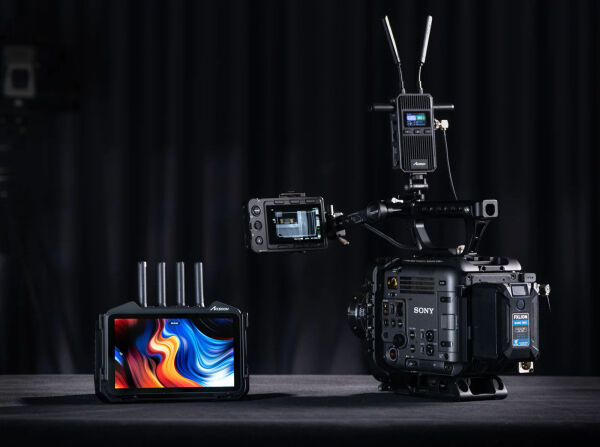

Accsoon CineView M7 PRO with other Accsoon CineView models
I/O
The interfaces of the CineView M7 (PRO) include an HDMI input and output up to 4K60 DCI, SDI input and output up to 1080P60, SD card recording, USB-C for external storage, audio inputs and outputs including Bluetooth audio monitoring and power supply via NP-F batteries, USB PD or DC.
Price and availability
With a planned selling price of under for the CineView M7 PRO and its wide range of features, both models are aimed at professional users. However, the final specifications may change before the market launch. Accsoon would like to collect customer feedback in order to optimize the final product. Interested visitors were already able to take a first look at the new smart monitors at NAB 2025.
;)
;)
;)
