Blackmagic Pyxis Monitor - 5” HDR touchscreen with camera control

[17:11 Thu,12.September 2024 by Thomas Richter]

Blackmagic&s cameras, introduced in April Pyxis 6K full-frame cameras, are only delivered with an electronic viewfinder - now Blackmagic has announced the Pyxis monitor, an extremely bright 5" HDR touchscreen with a resolution of 1920 x 1080 pixels, which can be used both for viewing the live camera image and for controlling the camera.

It features the same controls and overlays as the built-in LCD of the Pyxis and can thus be used as an alternative to control all the camera&s functions, including live video, HUD settings, menus, 3D LUTs, and metadata - for example, when the integrated camera display is obscured by rigging or accessories.

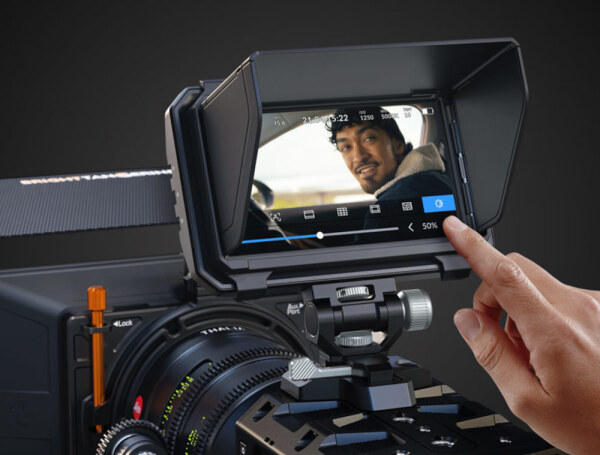

Blackmagic Pyxis Monitor

The Blackmagic Design Pyxis Monitor, made of metal, connects to the camera with just one USB-C cable and is extremely bright with a maximum brightness of 1,500 nits. It can be used both with the Blackmagic Pyxis and Ursa Cine cameras. Thanks to the numerous mounting points, it offers several mounting options and can be attached either as a large viewfinder directly to the camera or to a camera rig for easier focusing and framing. Thanks to its USB-C connection cable, it can also be mounted away from the camera on accessories like cranes or gimbals.

Blackmagic Pyxis Monitor

It is equipped with three freely assignable function buttons for quick access to Zebra, Focus Assist, False Color, and more. Its design is intended to allow the controls to be felt, even when operating the monitor from the front. Thanks to its bright display and the included removable sunshade, the Pyxis Monitor&s screen content is easy to read even in sunlight. During recording, a bright tally light on the monitor glows, which is easily visible from a distance.

The Blackmagic PYXIS Monitor also works with the Blackmagic URSA Cine. When mounted on this camera, it transforms into a large viewfinder since it shares the same USB-C connection as the Blackmagic PYXIS.

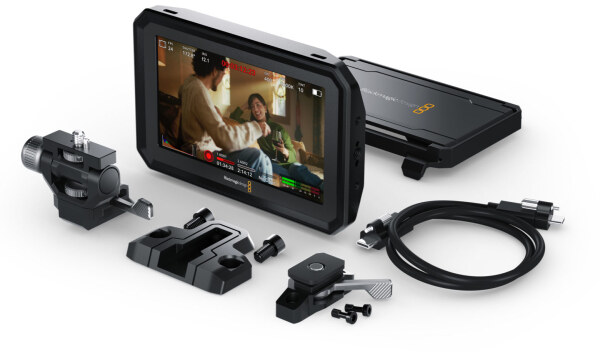

Blackmagic Design PYXIS Monitor Kit

Main features of the Pyxis Monitor

- 5" HDR touchscreen monitor
- full camera control
- resolution: 1920 x 1080
- up to 60 fps
- brightness: 1500 nits
- removable sunshade
- 1x USB-C video input
- built-in rear-facing LED tally
- on-screen controls via touch gestures on the touchscreen
- three assignable function buttons for quick access to functions
- multiple mounting points on the top and bottom (1/4" and M4 mounting points)
- Compatible with PYXIS, URSA Cine 12K LF, and URSA Cine 17K 65
- Video, power, and camera control via a single locking USB-C connection
- Built-in accelerometer for image orientation
- Available as a standalone monitor, monitor with PYXIS monitor mount, or monitor with EVF mount.

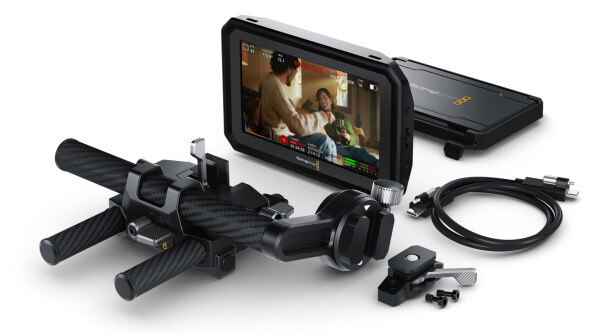

Blackmagic Design PYXIS Monitor EVF Kit

Compatibility

- Blackmagic Design PYXIS 6K
- Blackmagic Design PYXIS 6K PL
- Blackmagic Design PYXIS 6K EF
- Blackmagic Design URSA Cine 12K LF
- Blackmagic Design URSA Cine 17K 65

Availability and Price

The Blackmagic PYXIS Monitor will be available later this year from Blackmagic Design resellers worldwide in the following three versions:
- Blackmagic Design PYXIS Monitor for around 375 Euros
A sunshade is included in the package.
- Blackmagic Design PYXIS Monitor Kit for around 555 Euros
The package includes a sunshade, as well as the Blackmagic Design PYXIS Monitor Swivel Mount, Blackmagic Design PYXIS Monitor Fixed Mount, and Blackmagic Design PYXIS Monitor Dovetail Shoe.
- Blackmagic Design PYXIS Monitor EVF Kit for around 795 Euros
The package includes a sunshade, as well as the Blackmagic Design PYXIS Monitor Swivel Mount, Blackmagic Design PYXIS Monitor Fixed Mount, Blackmagic Design PYXIS Monitor Dovetail Shoe, and the Blackmagic URSA Cine EVF Bracket.
