Nanlite PavoSlim 240CL - Compact RGBWW LED panel with 21,000 lux

[17:42 Fri,13.September 2024 by Thomas Richter]

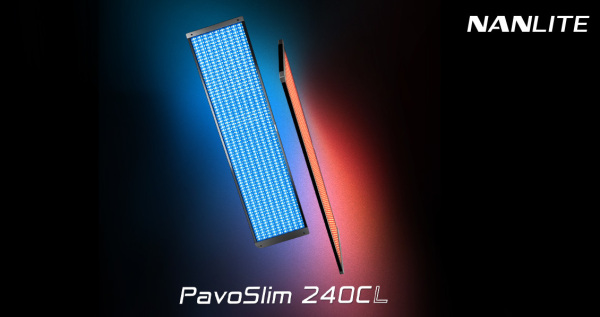

Nanlite presented the new PavoSlim 240CL at IBC 2024, a 4x1 RGBWW LED panel with a brightness of up to 21,030 lux at 5,600 K at a distance of one meter and a nominal power of 260 W. The PavoSlim 240CL, made of aluminum, features a slim design—only 2.35 cm thick—while being robust and relatively lightweight, weighing just 3.62 kg. Nanlite recommends it for shoots in tight spaces.

Here is also our interview clip on the new Pavoslim LED - fresh from the IBC:

Features

The color temperature of the PavoSlim 240CL is adjustable from 2,700 to 7,500 K, and its light intensity can be adjusted from 100% to 0% in 1% increments.

Nanlite PavoSlim 240CL

It offers 15 lighting effects, such as HUE loop, CCT loop, INT loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, lightbulb, fireworks, explosion, and welding. The color rendering index (CRI) averages 96, and the TLCI value is 97. The TM-30 values for color fidelity (Rf) and color saturation (Rg) are 94 and 100, respectively. The SSI value (color accuracy) is 84 at 3200K and 74 at 5600K.

Control Options

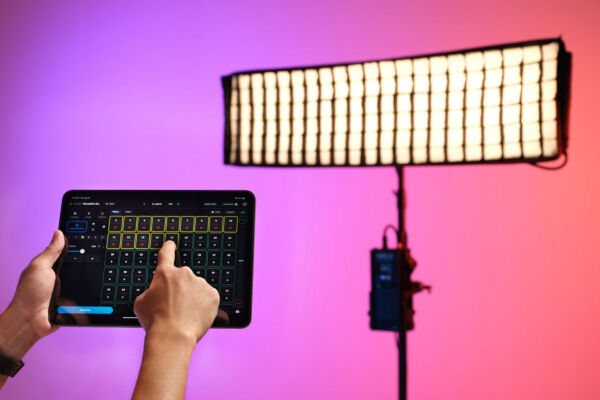

As usual, Nanlite offers several control options: The PavoSlim 240CL can be operated using the integrated 2" display and its two buttons and two dials, as well as via the included remote control, Bluetooth using the Nanlink app (iOS, Android), DMX/RDM, or LumenRadio CRMX. The PavoSlim 240CL can be powered either via mains power or an optional V-mount battery.

Nanlite PavoSlim 240CL

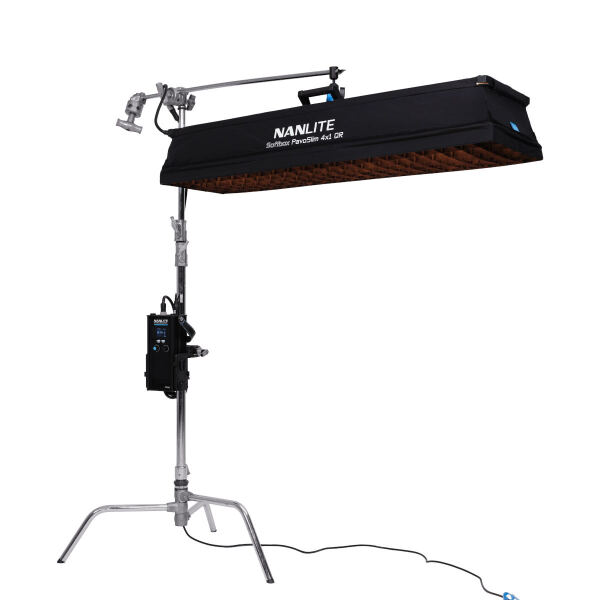

Like other models in Nanlite&s PavoSlim series, the PavoSlim 240CL comes with a pre-installed pop-up softbox. The softbox is ready for use as soon as the Velcro fasteners are removed. Also included is an eggcrate grid, which can be easily attached to the softbox using an elastic band.

Nanlite PavoSlim 240CL

The panel uses a fanless cooling system, making it suitable for use on sets where noise needs to be minimized, such as film productions with sound recording. Two PavoSlim 240CL panels can be combined into a 4x2 or even a 4x4 configuration, significantly expanding the light coverage.

Main Features of the PavoSlim 240LC

- 4x1 RGBWW LED panel, 260 W, up to 21,030 lux @1m (5600K)
- Color temperature range: 2700K-7500K, ±150 green/magenta correction
- CRI/TLCI average 96/97, TM-30 Rf/Rg average 94/100, SSI 3200K: 84/5600K:74
- Control via 2" display with buttons/dials, remote control, Nanlink app, DMX/RDM, LumenRadio CRMX
- Lighting modes: CCT, HSI, RGBW, GEL, EFFECT
- 15 lighting effects (flash, pulse, storm, police car, TV, candle, disco, etc.)
- Power options: AC, DC, V-mount battery
- Slim design (2.35 cm thick), made of aluminum, with heatsink
- Includes softbox, universal mount, baby pin, padded transport case

Price and Availability

The Nanlite PavoSlim 240CL LED panel can now be pre-ordered for around 2,080 euros and will be available soon.

For effective lighting setups for interviews, check out our article on

5 helpful lighting tricks, which can be easily implemented with the Nanlite PavoSlim 240CL, for example.
