Nanlux Evoke 5000B bi-color LED spotlight - bright and weatherproof
[12:29 Thu,13.February 2025 by blip]
Nanlux has officially unveiled the Evoke 5000B Bi-Color LED spotlight, initially announced last autumn, including full specifications. With a high light output of 5000 watts, it nearly matches the output of 9kW HMI or 24kW tungsten spotlights.

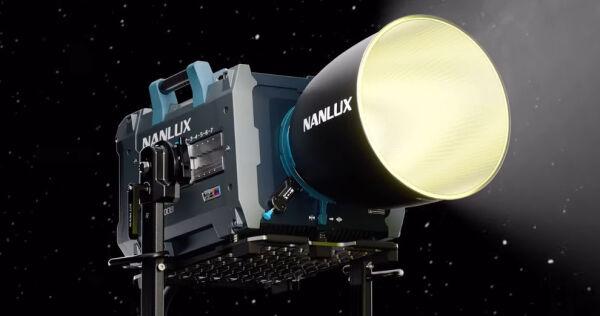

Nanlux Evoke 5000B
New Nebula B4 Light Engine
The Evoke 5000B features the new Nebula B4 light engine. Besides high white light efficiency, it offers a color temperature range of 2700 K–6500 K and a ±80 green/magenta adjustment across the entire Kelvin range. This is achieved by combining 4 types of white light chips. The Nebula B4 light engine is said to surpass conventional full-color engines by 30% in white light emission efficiency at the same power consumption.
With a beam angle of 95°, large areas can be illuminated without additional accessories, achieving a sun-like lighting effect. The spotlight also features smooth dimming, especially from 0.0% to 0.1% brightness for seamless fade-in and fade-out lighting. Through newly developed hardware combined with optimized mixing algorithms, it achieves fully linear dimming performance.

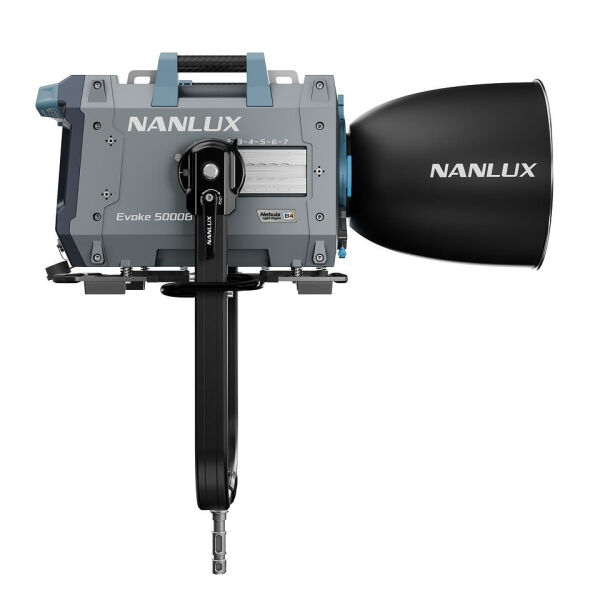

Nanlux Evoke 5000B
Design and Construction
The Evoke 5000B integrates the lamp head, control unit, and power supply into one device to reduce overall weight and size. Made of a magnesium alloy, the spotlight weighs 46 kg (with yoke).
Balancing rails allow for flexible head positioning, enabling control of the center of gravity when mounting various accessories. The motorized mounting bracket features a disc brake for secure angle locking and precise positioning with an angle indicator. The Evoke 5000B&s NL mount is equipped with the new PosiTight system, offering double security and ensuring a firmer connection between the device and accessories.

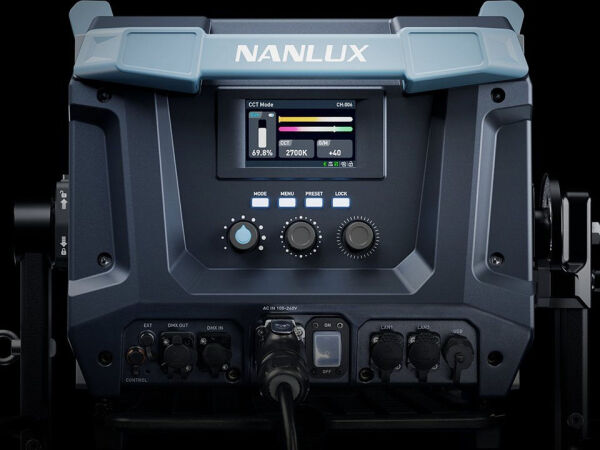

Nanlux Evoke 5000B Control Panel
The Evoke 5000B features a new cooling system and is also dust and weatherproof according to IP66. It can be operated directly on the housing via a small display with three knobs, four buttons, and a new user interface, as well as via a wired controller and, of course, common remote control methods (app, DMX/RDM, LumenRadio CRMX, Art-Net/sACN).
The Evoke 5000B will be compatible with the accessories of the existing Evoke 2400B. Additionally, a new, larger motorized Fresnel lens tailored to the Evoke 5000B will be introduced. It features a 45 cm lens with a zoom range of 16°–50°.

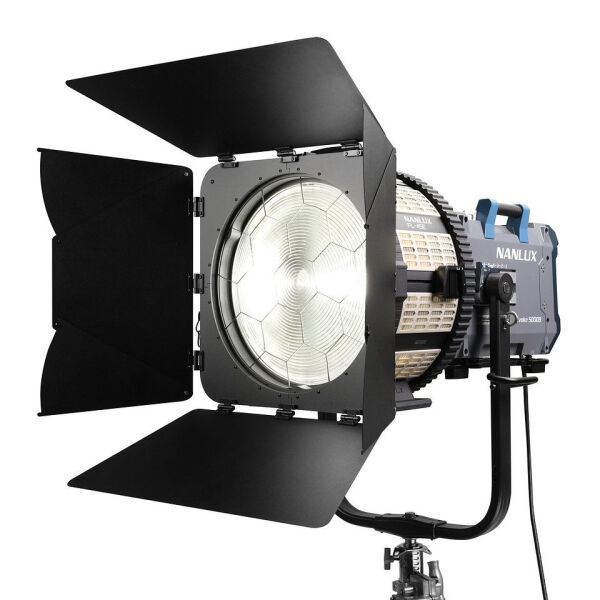

Nanlux Evoke 5000B with optional Fresnel lens
Features of the Nanlux Evoke 5000B
- Bi-color LED spotlight - Wide CCT range of 2700 K–6500 K with ±80 green/magenta adjustment - Excellent color rendering with an average CRI/TLCI of 97/98, average TM-30 Rf/Rg of 96/102 - Constructed from high-strength magnesium alloy and an IP66-certified housing, the all-in-one design weighs approx. 43 kg - New Nebula B4 Light Engine - Remarkable light intensity, approaching that of a 9 kW HMI or 24 kW tungsten light - Carefully engineered with balancing rail, yoke with disc brake, yoke and PosiTight system - Intuitive on-board operation - Wired and wireless control methods: On-board, wired controller, Nanlink app, remote control, DMX/RDM, LumenRadio CRMX, Art-Net/sACN - 12 built-in special effects with customizable parameters for each effect - Five fan modes: Smart, Full Speed, Low Speed, Pause, and Off - Compatible with the NL-Mount accessory ecosystem - Supports firmware updates
Pricing and Availability
The NANLUX Evoke 5000B Standard Kit costs €17,619 including VAT, the flight case costs €18,449. The motorized Fresnel attachment NANLUX FL-45E costs €3,069. Available from March 2025.
;)
;)
;)
;)
